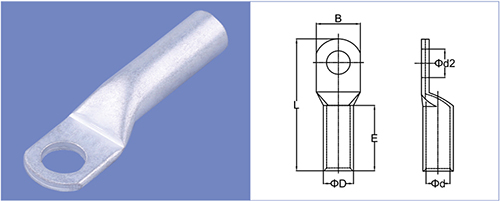

T铜管端子
端子材质:紫铜
绝缘材质:
特殊结构:观察孔
异形定制:支持
联系热线 189-0248-0505
T铜管端子
  • 详情说明



  • PART NO

    规格/编码

    ITEM NO

    品名型号

    尺寸DIMENSIONS(mm)

    Φd 2

    B

    L

    ΦD

    Φd

    E

    T1.5M4

    T1.5-4

    4.3

    8.7

    19



    4



    2.4



    7

    T1.5M5

    T1.5-5

    5.3

    8.7

    19

    T1.5M6

    T1.5-6

    6.4

    10

    20

    T2.5M4

    T2.5-4

    4.3

    8.7

    19





    4.3





    2.7





    7

    T2.5M5

    T2.5-5

    5.3

    8.7

    19

    T2.5M6

    T2.5-6

    6.4

    10.3

    21

    T2.5M8

    T2.5-8

    8.3

    12

    23

    T4M4

    T4-4

    4.3

    8.7

    21.5





    4.8





    3.1





    9.5

    T4M5

    T4-5

    5.3

    8.7

    21.5

    T4M6

    T4-6

    6.4

    10.3

    23.5

    T4M8

    T4-8

    8.3

    12.5

    28.5

    T6M4

    T6-4

    4.3

    10.3

    26







    5.5







    3.8







    10

    T6M5

    T6-5

    5.3

    10.3

    26

    T6M6

    T6-6

    6.4

    10.3

    26

    T6M8

    T6-8

    8.3

    13.9

    29

    T6M10

    T6-10

    10.5

    13.9

    29

    T10M4

    T10-4

    4.3

    11.9

    27.5









    6.9









    4.7









    11.5

    T10M5

    T10-5

    5.3

    11.9

    27.5

    T10M6

    T10-6

    6.4

    11.9

    27.5

    T10M8

    T10-8

    8.3

    13.5

    30.5

    T10M10

    T10-10

    10.5

    15

    30.5

    T10M12

    T10-12

    13.2

    17

    34

    T16M5

    T16-5

    5.3

    12

    27.5







    7.8







    5.6







    12

    T16M6

    T16-6

    6.4

    12

    27.5

    T16M8

    T16-8

    8.3

    13.5

    31

    T16M10

    T16-10

    10.5

    16

    32

    T16M12

    T16-12

    13.2

    17

    37.5

    T25M6

    T25-6

    6.4

    14

    34





    9.5





    7.1





    13.5

    T25M8

    T25-8

    8.3

    14

    34

    T25M10

    T25-10

    10.5

    16

    37

    T25M12

    T25-12

    13.2

    18

    40

    T35M6

    T35-6

    6.4

    16.5

    39









    11









    8.2









    16

    T35M8

    T35-8

    8.3

    16.5

    39

    T35M10

    T35-10

    10.5

    16.5

    43

    T35M12

    T35-12

    13.2

    18

    43

    T35M14

    T35-14

    14.5

    20

    48

    T35M16

    T35-16

    16.5

    23

    48

    T40M6

    T40-6

    6.4

    17

    44





    11.2





    9





    17

    T40M8

    T40-8

    8.3

    17

    44

    T40M10

    T40-10

    10.5

    17

    44

    T40M12

    T40-12

    13.2

    18

    44

    T50M6

    T50-6

    6.4

    18

    45







    12.5







    9.5







    20

    T50M8

    T50-8

    8.3

    18

    45

    T50M10

    T50-10

    10.5

    18

    49

    T50M12

    T50-12

    13.2

    18

    49

    T50M14

    T50-14

    14.5

    22

    54

    T50M16

    T50-16

    16.5

    25

    62



    14



    9.5



    23

    T50M20

    T50-20

    21

    28

    68



    PART NO.

    规格/编码

    ITEM NO.

    品名型号

    尺寸DIMENSIONS(mm)

    Φd 2

    B

    L

    ΦD

    Φd

    E

    T70M8

    T70-8

    8.3

    21.5

    47.6







    15







    11.5







    20

    T70M10

    T70-10

    10.5

    21.5

    51.6

    T70M12

    T70-12

    13.2

    21.5

    51.6

    T70M14

    T70-14

    14.5

    21.5

    62.6

    T70M16

    T70-16

    16.5

    21.5

    62.6

    T70M20

    T70-20

    21

    30

    62.6

    T95M8

    T95-8

    8.3

    25

    55.8



    17



    13.5



    22

    T95M10

    T95-10

    10.5

    25

    55.8

    T95M12

    T95-12

    13.2

    25

    55.8

    T95M14

    T95-14

    14.5

    25

    66.8



    17



    13.5



    22

    T95M16

    T95-16

    16.5

    25

    66.8

    T95M20

    T95-20

    21

    30

    66.8

    T120M10

    T120-10

    10.5

    29

    71.5







    20







    15.6







    27

    T120M12

    T120-12

    13.2

    29

    71.5

    T120M14

    T120-14

    14.5

    29

    71.5

    T120M16

    T120-16

    16.5

    29

    71.5

    T120M20

    T120-20

    21

    29

    71.5

    T150M10

    T150-10

    10.5

    30.6

    78







    21







    16.5







    32

    T150M12

    T150-12

    13.2

    30.6

    78

    T150M14

    T150-14

    14.5

    30.6

    78

    T150M16

    T150-16

    16.5

    30.6

    78

    T150M20

    T150-20

    21

    30.6

    78

    T185M10

    T185-10

    10.5

    34

    84







    23.6







    18.4







    34

    T185M12

    T185-12

    13.2

    34

    84

    T185M14

    T185-14

    14.5

    34

    84

    T185M16

    T185-16

    16.5

    34

    84

    T185M20

    T185-20

    21

    34

    84

    T240M10

    T240-10

    10.5

    38.5

    90







    26.4







    21.2







    37

    T240M12

    T240-12

    13.2

    38.5

    90

    T240M14

    T240-14

    14.5

    38.5

    90

    T240M16

    T240-16

    16.5

    38.5

    90

    T240M20

    T240-20

    21

    38.5

    90

    T300M10

    T300-10

    10.5

    42

    96







    28.6







    23.4







    40

    T300M12

    T300-12

    13.2

    42

    96

    T300M14

    T300-14

    14.5

    42

    96

    T300M16

    T300-16

    16.5

    42

    96

    T300M20

    T300-20

    21

    42

    96

    T400M10

    T400-10

    10.5

    48

    104.7







    32.8







    26.8







    37

    T400M12

    T400-12

    13.2

    48

    104.7

    T400M14

    T400-14

    14.5

    48

    104.7

    T400M16

    T400-16

    16.5

    48

    104.7

    T400M20

    T400-20

    21

    48

    104.7

    T500M10

    T500-10

    10.5

    55

    115.5







    38.4







    29.8







    46.5

    T500M12

    T500-12

    13.2

    55

    115.5

    T500M14

    T500-14

    14.5

    55

    115.5

    T500M16

    T500-16

    16.5

    55

    115.5

    T500M20

    T500-20

    21

    55

    115.5

    T630M10

    T630-10

    10.5

    64

    133.1







    44.7







    34.5







    50

    T630M12

    T630-12

    13.2

    64

    133.1

    T630M14

    T630-14

    14.5

    64

    133.1

    T630M16

    T630-16

    16.5

    64

    133.1

    T630M20

    T630-20

    21

    64

    133.1
