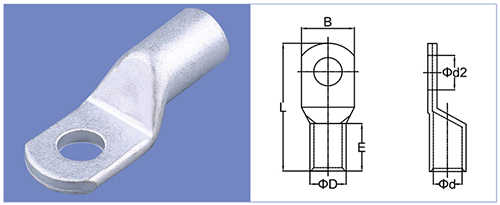

HUP铜管端子
端子材质:紫铜
绝缘材质:
特殊结构:加厚
异形定制:支持
联系热线 189-0248-0505
HUP铜管端子
  • 详情说明


  • PART NO.

    规格/编码

    ITEM NO.

    品名型号

    尺寸DIMENSIONS(mm)

    Φd 2

    B

    L

    ΦD

    Φd

    E

    HUP6M5

    HUP6-5

    5.3

    10

    27.5







    6.5







    3.5







    9

    HUP6M6

    HUP6-6

    6.5

    12

    27.5

    HUP6M8

    HUP6-8

    8.5

    15

    33

    HUP6M10

    HUP6-10

    10.5

    17

    37

    HUP6M12

    HUP6-12

    13

    19

    41

    HUP10M5

    HUP10-5

    5.3

    12

    28.5







    7







    4.5







    10

    HUP10M6

    HUP10-6

    6.5

    12

    28.5

    HUP10M8

    HUP10-8

    8.5

    15

    35

    HUP10M10

    HUP10-10

    10.5

    17

    39

    HUP10M12

    HUP10-12

    13

    19

    42

    HUP16M5

    HUP16-5

    5.3

    12

    32.5







    8.5







    5.5







    13

    HUP16M6

    HUP16-6

    6.5

    12

    33.3

    HUP16M8

    HUP16-8

    8.5

    15

    37.5

    HUP16M10

    HUP16-10

    10.5

    17

    41.5

    HUP16M12

    HUP16-12

    13

    19

    45

    HUP16M14

    HUP16-14

    15

    21

    45

    HUP25M5

    HUP25-5

    5.3

    14

    37.5







    10







    7







    15

    HUP25M6

    HUP25-6

    6.5

    14

    37.5

    HUP25M8

    HUP25-8

    8.5

    16

    42

    HUP25M10

    HUP25-10

    10.5

    18

    46

    HUP25M12

    HUP25-12

    13

    19

    48

    HUP25M14

    HUP25-14

    15

    21

    52.5

    HUP35M6

    HUP35-6

    6.5

    17

    39.5







    12







    8.5







    17

    HUP35M8

    HUP35-8

    8.5

    17

    44

    HUP35M10

    HUP35-10

    10.5

    19

    49

    HUP35M12

    HUP35-12

    13

    21

    51

    HUP35M14

    HUP35-14

    15

    21

    54.5

    HUP35M16

    HUP35-16

    17

    26

    58

    HUP50M6

    HUP50-6

    6.5

    20

    47









    14









    10









    19

    HUP50M8

    HUP50-8

    8.5

    20

    47

    HUP50M10

    HUP50-10

    10.5

    20

    51

    HUP50M12

    HUP50-12

    13

    23

    56

    HUP50M14

    HUP50-14

    15

    23

    59.5

    HUP50M16

    HUP50-16

    17

    28

    62

    HUP50M20

    HUP50-20

    21

    30

    67

    HUP70M6

    HUP70-6

    6.5

    23.5

    53







    16.5







    12







    21

    HUP70M8

    HUP70-8

    8.5

    23.5

    53

    HUP70M10

    HUP70-10

    10.5

    23.5

    56

    HUP70M12

    HUP70-12

    13

    23.5

    59

    HUP70M14

    HUP70-14

    15

    23.5

    62.5



    PART NO.

    规格/编码

    ITEM NO.

    品名型号

    尺寸DIMENSIONS(mm)

    Φd 2

    B

    L

    ΦD

    Φd

    E

    HUP70M16

    HUP70-16

    17

    28

    66



    16.5



    12



    21

    HUP70M20

    HUP70-20

    21

    30

    72

    HUP95M8

    HUP95-8

    8.5

    26

    60







    18







    13.5







    25

    HUP95M10

    HUP95-10

    10.5

    26

    60

    HUP95M12

    HUP95-12

    13

    26

    62

    HUP95M14

    HUP95-14

    15

    26

    65.5

    HUP95M16

    HUP95-16

    17

    28

    70

    HUP95M20

    HUP95-20

    21

    36

    82

    26

    HUP120M8

    HUP120-8

    8.5

    28

    65







    19.5







    15







    26

    HUP120M10

    HUP120-10

    10.5

    28

    65

    HUP120M12

    HUP120-12

    13

    28

    65

    HUP120M14

    HUP120-14

    15

    28

    67

    HUP120M16

    HUP120-16

    17

    30

    70

    HUP120M20

    HUP120-20

    21

    36

    85

    28

    HUP150M8

    HUP150-8

    8.5

    30.5

    70







    21







    16.5







    30

    HUP150M10

    HUP150-10

    10.5

    30.5

    72

    HUP150M12

    HUP150-12

    13

    30.5

    72

    HUP150M14

    HUP150-14

    15

    30.5

    72

    HUP150M16

    HUP150-16

    17

    30.5

    74

    HUP150M20

    HUP150-20

    21

    36

    88

    HUP185M10

    HUP185-10

    10.5

    35

    83







    24







    19







    30

    HUP185M12

    HUP185-12

    13

    35

    83

    HUP185M14

    HUP185-14

    15

    35

    83

    HUP185M16

    HUP185-16

    17

    35

    83

    HUP185M20

    HUP185-20

    21

    39

    91

    HUP240M10

    HUP240-10

    10.5

    38

    93.5







    26







    21







    35

    HUP240M12

    HUP240-12

    13

    38

    93.5

    HUP240M14

    HUP240-14

    15

    38

    93.5

    HUP240M16

    HUP240-16

    17

    38

    93.5

    HUP240M20

    HUP240-20

    21

    38

    93.5

    HUP300M12

    HUP300-12

    13

    43

    111





    29.5





    23.5





    44

    HUP300M14

    HUP300-14

    15

    43

    111

    HUP300M16

    HUP300-16

    17

    43

    111

    HUP300M20

    HUP300-20

    21

    43

    111

    HUP400M12

    HUP400-12

    13

    49.5

    114





    34





    27





    44

    HUP400M14

    HUP400-14

    15

    49.5

    114

    HUP400M16

    HUP400-16

    17

    49.5

    114

    HUP400M20

    HUP400-20

    21

    49.5

    114
