GCL喇叭口铜管端子

端子材质:紫铜
绝缘材质:
特殊结构:喇叭口
异形定制:支持
联系电话 0755-28789456/28789345
联系手机 13380359332

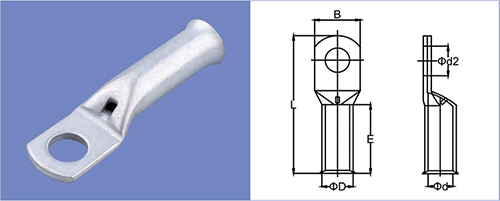

GCL喇叭口铜管端子
  • 详情说明


  • PART NO.

    规格/编码

    ITEM NO.

    品名型号

    尺寸DIMENSIONS(mm)

    Φd 2

    B

    L

    ΦD

    Φd

    E

    GCL1.5M3

    GCL1.5-3

    3.2

    8

    21





    3.7





    1.8



    11

    GCL1.5M4

    GCL1.5-4

    4.3

    8

    22

    GCL1.5M5

    GCL1.5-5

    5.3

    10

    24



    12

    GCL1.5M6

    GCL1.5-6

    6.5

    10

    25

    GCL2.5M3

    GCL2.5-3

    3.2

    8

    22





    3.9







    2.3







    12

    GCL2.5M4

    GCL2.5-4

    4.3

    8

    23

    GCL2.5M5

    GCL2.5-5

    5.3

    10

    25

    GCL2.5M6

    GCL2.5-6

    6.5

    10

    25

    GCL2.5M8

    GCL2.5-8

    8.3

    12.5

    27.5

    4.3

    GCL4M4

    GCL4-4

    4.3

    10

    26





    4.7





    3





    13

    GCL4M5

    GCL4-5

    5.3

    10

    27

    GCL4M6

    GCL4-6

    6.5

    10

    28

    GCL4M8

    GCL4-8

    8.3

    12.5

    29

    GCL6M4

    GCL6-4

    4.3

    10

    33.6





    5.9







    4







    18.5

    GCL6M5

    GCL6-5

    5.3

    10

    33.6

    GCL6M6

    GCL6-6

    6.5

    11

    33.6

    GCL6M8

    GCL6-8

    8.3

    12.5

    36.3

    GCL6M10

    GCL6-10

    10.3

    15

    37.3

    6.2

    GCL10M5

    GCL10-5

    5.3

    11

    39



    6.6







    4.5





    22

    GCL10M6

    GCL10-6

    6.5

    11

    39

    GCL10M8

    GCL10-8

    8.3

    12.5

    39

    GCL10M10

    GCL10-10

    10.3

    16

    43.1



    6.9

    GCL10M12

    GCL10-12

    12.7

    18

    43.1

    21

    GCL16M5

    GCL16-5

    5.3

    11

    39.7





    7.5







    5.5



    23

    GCL16M6

    GCL16-6

    6.5

    11

    39.7

    GCL16M8

    GCL16-8

    8.3

    12.5

    39.7

    22

    GCL16M10

    GCL16-10

    10.3

    16

    44.9

    23

    GCL16M12

    GCL16-12

    12.7

    18

    44.9

    8.1

    22

    GCL25M5

    GCL25-5

    5.3

    13

    47.2







    9.1







    6.7





    28

    GCL25M6

    GCL25-6

    6.5

    13

    47.2

    GCL25M8

    GCL25-8

    8.3

    13

    47.2

    GCL25M10

    GCL25-10

    10.3

    16

    51.9

    29

    GCL25M12

    GCL25-12

    12.7

    18

    51.9

    28

    GCL25M14

    GCL25-14

    14.8

    20

    53.9

    GCL35M5

    GCL35-5

    5.3

    16

    52.6









    11









    8.6









    31

    GCL35M6

    GCL35-6

    6.5

    16

    52.6

    GCL35M8

    GCL35-8

    8.3

    16

    52.6

    GCL35M10

    GCL35-10

    10.3

    17

    56.5

    GCL35M12

    GCL35-12

    12.7

    18

    56.5

    GCL35M14

    GCL35-14

    14.8

    20

    58.5

    GCL35M16

    GCL35-16

    16.5

    23

    60.5

    GCL50M5

    GCL50-5

    5.3

    18

    56





    12.4





    9.5





    32

    GCL50M6

    GCL50-6

    6.5

    18

    56

    GCL50M8

    GCL50-8

    8.3

    18

    56

    GCL50M10

    GCL50-10

    10.3

    18

    59



    PART NO.

    规格/编码

    ITEM NO.

    品名型号

    尺寸DIMENSIONS(mm)

    Φd 2

    B

    L

    ΦD

    Φd

    E

    GCL50M12

    GCL50-12

    12.7

    19

    59



    12.4



    9.5

    32

    GCL50M14

    GCL50-14

    14.8

    21

    67.8

    34

    GCL50M16

    GCL50-16

    16.5

    23

    67.8

    GCL70M5

    GCL70-5

    5.3

    22

    67.4









    15









    12







    36.5

    GCL70M6

    GCL70-6

    6.3

    22

    67.4

    GCL70M8

    GCL70-8

    8.3

    22

    67.4

    GCL70M10

    GCL70-10

    10.3

    22

    67.4

    GCL70M12

    GCL70-12

    12.7

    22

    67.4

    GCL70M14

    GCL70-14

    14.8

    22

    70

    GCL70M16

    GCL70-16

    16.5

    24

    70

    35

    GCL95M8

    GCL95-8

    8.3

    25

    69.7







    17







    13.4







    37.5

    GCL95M10

    GCL95-10

    10.3

    25

    69.7

    GCL95M12

    GCL95-12

    12.7

    25

    69.7

    GCL95M14

    GCL95-14

    14.8

    25

    73.3

    GCL95M16

    GCL95-16

    16.5

    25

    73.3

    GCL95M20

    GCL95-20

    20.9

    28

    73.3

    34.5

    GCL120M8

    GCL120-8

    8.3

    27.5

    75







    19







    15







    38

    GCL120M10

    GCL120-10

    10.3

    27.5

    75

    GCL120M12

    GCL120-12

    12.7

    27.5

    75

    GCL120M14

    GCL120-14

    14.8

    27.5

    79

    GCL120M16

    GCL120-16

    16.5

    27.5

    79

    GCL120M20

    GCL120-20

    20.9

    27.5

    79

    GCL150M10

    GCL150-10

    10.3

    30.5

    82







    21.2







    16.5







    42

    GCL150M12

    GCL150-12

    12.7

    30.5

    82

    GCL150M14

    GCL150-14

    14.8

    30.5

    82

    GCL150M16

    GCL150-16

    16.5

    30.5

    86.4

    GCL150M20

    GCL150-20

    20.9

    30.5

    86.4

    GCL185M10

    GCL185-10

    10.3

    34

    88







    23







    19







    45

    GCL185M12

    GCL185-12

    12.7

    34

    88

    GCL185M14

    GCL185-14

    14.8

    34

    88

    GCL185M16

    GCL185-16

    16.5

    34

    91.2

    GCL185M20

    GCL185-20

    20.9

    34

    91.2

    GCL240M10

    GCL240-10

    10.3

    38.6

    106.4







    26.5







    21







    53

    GCL240M12

    GCL240-12

    12.7

    38.6

    106.4

    GCL240M14

    GCL240-14

    14.8

    38.6

    106.4

    GCL240M16

    GCL240-16

    16.5

    38.6

    106.4

    GCL240M20

    GCL240-20

    20.9

    38.6

    106.4

    GCL300M12

    GCL300-12

    12.7

    43.8

    113





    30





    24.5





    57

    GCL300M14

    GCL300-14

    14.8

    43.8

    113

    GCL300M16

    GCL300-16

    16.5

    43.8

    113

    GCL300M20

    GCL300-20

    20.9

    43.8

    113

    GCL400M12

    GCL400-12

    12.7

    50

    119





    35





    27





    59

    GCL400M14

    GCL400-14

    14.8

    50

    119

    GCL400M16

    GCL400-16

    16.5

    50

    119

    GCL400M20

    GCL400-20

    20.9

    50

    119
