SC铜管端子
端子材质:紫铜
绝缘材质:
特殊结构:观察孔
异形定制:支持
联系热线 189-0248-0505

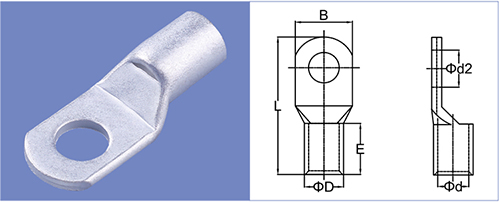

SC铜管端子
  • 详情说明


  • PART NO.

    规格/编码

    ITEM NO.

    品名型号

    尺寸DIMENSIONS(mm)

    Φd2

    B

    L

    ΦD

    Φd

    E

    SC1.5M4

    SC1.5-4

    4.2

    8

    16



    3.7



    1.8



    5

    SC1.5M5

    SC1.5-5

    5.2

    10

    17

    SC1.5M6

    SC1.5-6

    6.5

    10

    18

    SC2.5M4

    SC2.5-4

    4.2

    8

    18





    4





    2.4





    7

    SC2.5M5

    SC2.5-5

    5.2

    10

    20

    SC2.5M6

    SC2.5-6

    6.5

    10

    20

    SC2.5M8

    SC2.5-8

    8.4

    12.5

    23

    SC4M4

    SC4-4

    4.2

    10

    20





    4.8





    3.1





    7

    SC4M5

    SC4-5

    5.2

    10

    20

    SC4M6

    SC4-6

    6.5

    10

    20

    SC4M8

    SC4-8

    8.4

    12.5

    23

    SC6M4

    SC6-4

    4.2

    10

    24





    5.5





    3.8







    9

    SC6M5

    SC6-5

    5.2

    10

    24

    SC6M6

    SC6-6

    6.5

    12

    24

    SC6M8

    SC6-8

    8.4

    12.5

    26

    SC6M10

    SC6-10

    10.5

    15

    28

    6.2

    4

    SC10M5

    SC10-5

    5.2

    12

    25







    6.2







    4.5







    9

    SC10M6

    SC10-6

    6.5

    12

    25

    SC10M8

    SC10-8

    8.4

    12.5

    27

    SC10M10

    SC10-10

    10.5

    15

    29

    SC10M12

    SC10-12

    13

    17

    31

    SC16M5

    SC16-5

    5.2

    12

    30







    7.1







    5.4







    12

    SC16M6

    SC16-6

    6.5

    12

    30

    SC16M8

    SC16-8

    8.4

    12.5

    30

    SC16M10

    SC16-10

    10.5

    16

    33

    SC16M12

    SC16-12

    13

    17

    35

    SC25M5

    SC25-5

    5.2

    13

    33









    8.8









    6.8









    12

    SC25M6

    SC25-6

    6.5

    13

    33

    SC25M8

    SC25-8

    8.4

    15

    33

    SC25M10

    SC25-10

    10.5

    18

    34

    SC25M12

    SC25-12

    13

    18

    35

    SC25M14

    SC25-14

    15

    20

    38

    SC35M5

    SC35-5

    5.2

    16

    38









    10.6









    8.2









    14

    SC35M6

    SC35-6

    6.5

    16

    38

    SC35M8

    SC35-8

    8.4

    16

    38

    SC35M10

    SC35-10

    10.5

    18

    39

    SC35M12

    SC35-12

    13

    19

    40.5

    SC35M14

    SC35-14

    15

    20

    42

    SC50M6

    SC50-6

    6.5

    17.8

    45









    12.4









    9.5









    16

    SC50M8

    SC50-8

    8.4

    17.8

    45

    SC50M10

    SC50-10

    10.5

    17.8

    45

    SC50M12

    SC50-12

    13

    20

    45

    SC50M14

    SC50-14

    15

    22

    46

    SC50M16

    SC50-16

    17

    24

    47

    SC70M8

    SC70-8

    8.4

    21

    52





    14.7





    11.2





    20

    SC70M10

    SC70-10

    10.5

    21

    52

    SC70M12

    SC70-12

    13

    21

    52

    SC70M14

    SC70-14

    15

    21

    52



    PART NO.

    规格/编码

    ITEM NO.

    品名型号

    尺寸DIMENSIONS(mm)

    Φd2

    B

    L

    ΦD

    Φd

    E

    SC70M16

    SC70-16

    17

    25

    53

    14.7

    11.2

    20

    SC95M8

    SC95-8

    8.4

    25

    58







    17.4







    13.5







    23

    SC95M10

    SC95-10

    10.5

    25

    58

    SC95M12

    SC95-12

    13

    25

    58

    SC95M14

    SC95-14

    15

    25

    58

    SC95M16

    SC95-16

    17

    25

    58

    SC120M8

    SC120-8

    8.4

    28

    63









    19.4









    15









    22

    SC120M10

    SC120-10

    10.5

    28

    63

    SC120M12

    SC120-12

    13

    28

    63

    SC120M14

    SC120-14

    15

    28

    63

    SC120M16

    SC120-16

    17

    28

    63

    SC120M20

    SC120-20

    21

    28

    63

    SC150M8

    SC150-8

    8.4

    30.5

    70









    21.2









    16.5









    26

    SC150M10

    SC150-10

    10.5

    30.5

    70

    SC150M12

    SC150-12

    13

    30.5

    70

    SC150M14

    SC150-14

    15

    30.5

    70

    SC150M16

    SC150-16

    17

    30.5

    70

    SC150M20

    SC150-20

    21

    30.5

    70

    SC185M10

    SC185-10

    10.5

    34

    75







    23.5







    18.5







    32

    SC185M12

    SC185-12

    13

    34

    75

    SC185M14

    SC185-14

    15

    34

    75

    SC185M16

    SC185-16

    17

    34

    75

    SC185M20

    SC185-20

    21

    34

    75

    SC240M10

    SC240-10

    10.5

    38.5

    90









    26.5









    21









    38

    SC240M12

    SC240-12

    13

    38.5

    90

    SC240M14

    SC240-14

    15

    38.5

    90

    SC240M16

    SC240-16

    17

    38.5

    90

    SC240M18

    SC240-18

    19

    38.5

    90

    SC240M20

    SC240-20

    21

    38.5

    90

    SC300M10

    SC300-10

    10.5

    43

    98







    30







    23.5







    42

    SC300M12

    SC300-12

    13

    43

    98

    SC300M14

    SC300-14

    15

    43

    98

    SC300M16

    SC300-16

    17

    43

    98

    SC300M20

    SC300-20

    21

    43

    98

    SC400M10

    SC400-10

    10.5

    52.5

    110







    36.5







    28.5







    44

    SC400M12

    SC400-12

    13

    52.5

    110

    SC400M14

    SC400-14

    15

    52.5

    110

    SC400M16

    SC400-16

    17

    52.5

    110

    SC400M20

    SC400-20

    21

    52.5

    110

    SC500M10

    SC500-10

    10.5

    56

    120







    39







    30







    48

    SC500M12

    SC500-12

    13

    56

    120

    SC500M14

    SC500-14

    15

    56

    120

    SC500M16

    SC500-16

    17

    56

    120

    SC500M20

    SC500-20

    21

    56

    120

    SC630M10

    SC630-10

    10.5

    65

    140







    45







    35







    56

    SC630M12

    SC630-12

    13

    65

    140

    SC630M14

    SC630-14

    15

    65

    140

    SC630M16

    SC630-16

    17

    65

    140

    SC630M20

    SC630-20

    21

    65

    140
