LYF90度折弯铜管端子
端子材质:紫铜
绝缘材质:
特殊结构:折弯90°
异形定制:支持
联系热线 189-0248-0505

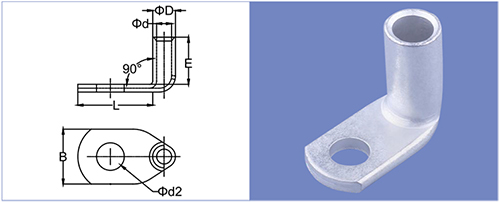

LYF90度折弯铜管端子
  • 详情说明


  • PART NO.

    规格/编码

    ITEM NO.

    品名型号

    尺寸DIMENSIONS(mm)

    Φd 2

    B

    L

    ΦD

    Φd

    E

    LYF10M6D90

    LYF90°10-6

    6.5

    13

    18

    8

    5

    15

    LYF10M8D90

    LYF90°10-8

    8.4

    13.5

    20.5

    8

    5

    15

    LYF16M6D90

    LYF90°16-6

    6.5

    13

    18

    9

    6

    17

    LYF16M8D90

    LYF90°16-8

    8.4

    13.5

    20.5

    9

    6

    17

    LYF25M6D90

    LYF90°25-6

    6.5

    16

    18

    11

    8

    18.5

    LYF25M8D90

    LYF90°25-8

    8.4

    16

    20.5

    11

    8

    18.5

    LYF25M10D90

    LYF90°25-10

    10.5

    17

    25

    11

    8

    18.5

    LYF35M6D90

    LYF90°35-6

    6.5

    18

    18

    13

    9

    22.5

    LYF35M8D90

    LYF90°35-8

    8.4

    17

    20.5

    12

    8.5

    22.5

    LYF35M10D90

    LYF90°35-10

    10.5

    18

    25

    13

    9

    22.5

    LYF50M6D90

    LYF90°50-6

    6.5

    21

    26

    14.5

    11

    30.5

    LYF50M8D90

    LYF90°50-8

    8.4

    21

    26

    14.5

    11

    30.5

    LYF50M10D90

    LYF90°50-10

    10.5

    21

    30

    14.5

    11

    30.5

    LYF50M12D90

    LYF90°50-12

    13

    21

    32

    14.5

    11

    30.5

    LYF70M6D90

    LYF90°70-6

    6.5

    24

    26

    16.5

    12

    31.5

    LYF70M8D90

    LYF90°70-8

    8.4

    24

    26

    16.5

    12

    31.5

    LYF70M10D90

    LYF90°70-10

    10.5

    24

    30

    16.5

    12

    31.5

    LYF70M12D90

    LYF90°70-12

    13

    24

    32

    16.5

    12

    31.5

    LYF95M8D90

    LYF90°95-8

    8.4

    29

    26

    20

    15

    32.5

    LYF95M10D90

    LYF90°95-10

    10.5

    29

    30

    20

    15

    32.5

    LYF95M12D90

    LYF90°95-12

    13

    29

    32

    20

    15

    32.5

    LYF95M16D90

    LYF90°95-16

    17

    29

    36

    20

    15

    32.5

    LYF120M10D90

    LYF90°120-10

    10.5

    32

    30

    22

    17

    34.5

    LYF120M12D90

    LYF90°120-12

    13

    32

    32

    22

    17

    34.5

    LYF120M16D90

    LYF90°120-16

    17

    32

    36

    22

    17

    34.5
